digiLED DLPo 5.9 LED Floor System

When you need an LED Floor for a project, Pete’s Big TVs has a variety of solutions for this creative video application. Please contact us at PBTV and we can find the right floor solution to meet your design needs. All LED Floor solutions employ the digiLED DLPo 5.9 LED modules with a high-resolution of 5.9mm.

The DLPo 5.9 LED Floor System from PBTV offers designers the ability to layer beautiful, high-resolution imagery that covers the floor itself in their production and video designs with this innovative system. You can seamlessly extend an LED back or side wall right into an LED floor or create a standalone LED floor within your overall design. Exceptional image quality, seamless floor design integration, easy flexible configuration, and precise, accurate processing are all built-in to the reliability of the digiLED DLPo 5.9 LED Floor System.

Further enhancing the user experience and reliability of the digiLED DLPo 5.9 LED Floor System is the use of NovaStar NovaPro HD processing for precise module-to-module calibration that ensures accurate color matching for an overall excellent image.

PBTV has designed two unique frame arrangements to hold high-resolution 5.9mm pixel pitch modules to create the right solution for any design.

PBTV 3x2 LED Floor Frames
For those spaces where time is at a premium and you need a faster load-in, or if you need your LED floor to have different heights, then the PBTV 3x2 Frame is the right solution for you. With a 3x2 module arrangement, this Frame allows for extremely versatile creative design possibilities. This frame holds six 500mm x 500mm LED modules in one frame. The LED modules travel in the frames on set carts and saves considerable time during load-ins.

Ease of load-in, setup, and load-out, as well as fast access replacement for troubleshooting is thoughtfully addressed by using guide pins for side-to-side alignment with an industrial magnet system which holds each individual LED module, and its own individual Plexiglas covering, in place. This means that any tile can be quickly and easily placed—and replaced—without having to de-construct the entire floor. With interchangeable legs, the floor can go from a minimum height of 12” to a maximum height of 48”.

PBTV 1x2 & 1x1 LED Floor Frames
For those creative applications where you have a fixed floor size, or if you need an odd shape, then the PBTV 2x1 or 1x1 LED Floor Frames are the right choice. These frames allow for more flexibility for custom shapes. Please note that the 2x1 and 1x1 Frames have no legs, just the leveling feet which make the overall height between 6.875” and 7.875”.

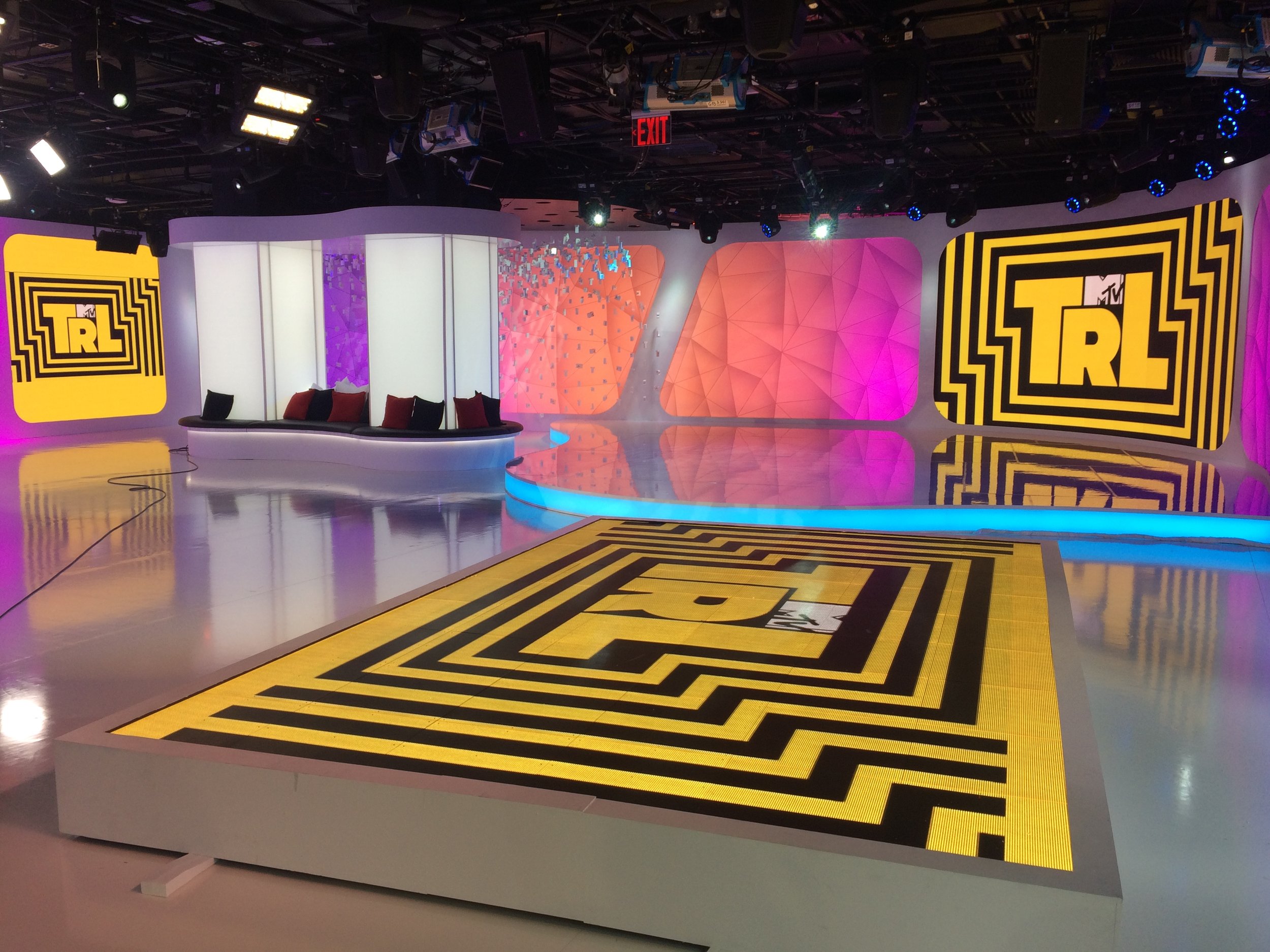

5.9mm LED Floor System in action:
